PTO Shaft for Fertilizer Broadcaster: Engineered for Peak Fertilizer Application Performance

Whether you operate a small family farm or a large-scale commercial fertilizer application operation, a reliable PTO shaft for fertilizer broadcaster is essential for safe, efficient power transfer between your tractor and implement. Our precision-manufactured fertilizer broadcaster PTO drive shaft delivers superior torque capacity, extended service life, and drop-in compatibility with all major fertilizer broadcaster brands. Built from premium alloy steel with hardened universal joints and CE-certified safety guards, this power take-off shaft is ready for the toughest fertilizer application conditions in Australia and worldwide.

Overview – Why Your Fertilizer Broadcaster Needs a Quality PTO Shaft

The PTO (Power Take-Off) shaft is the critical mechanical link that transmits rotational energy from your tractor’s PTO output to the fertilizer broadcaster implement. In fertilizer application applications, the PTO shaft must handle fluctuating loads, varying operating angles, and harsh field environments — from dusty paddocks to wet, heavy soils. A poorly matched or worn PTO shaft leads to power loss, excessive vibration, premature bearing failure, and potentially dangerous shaft separation.

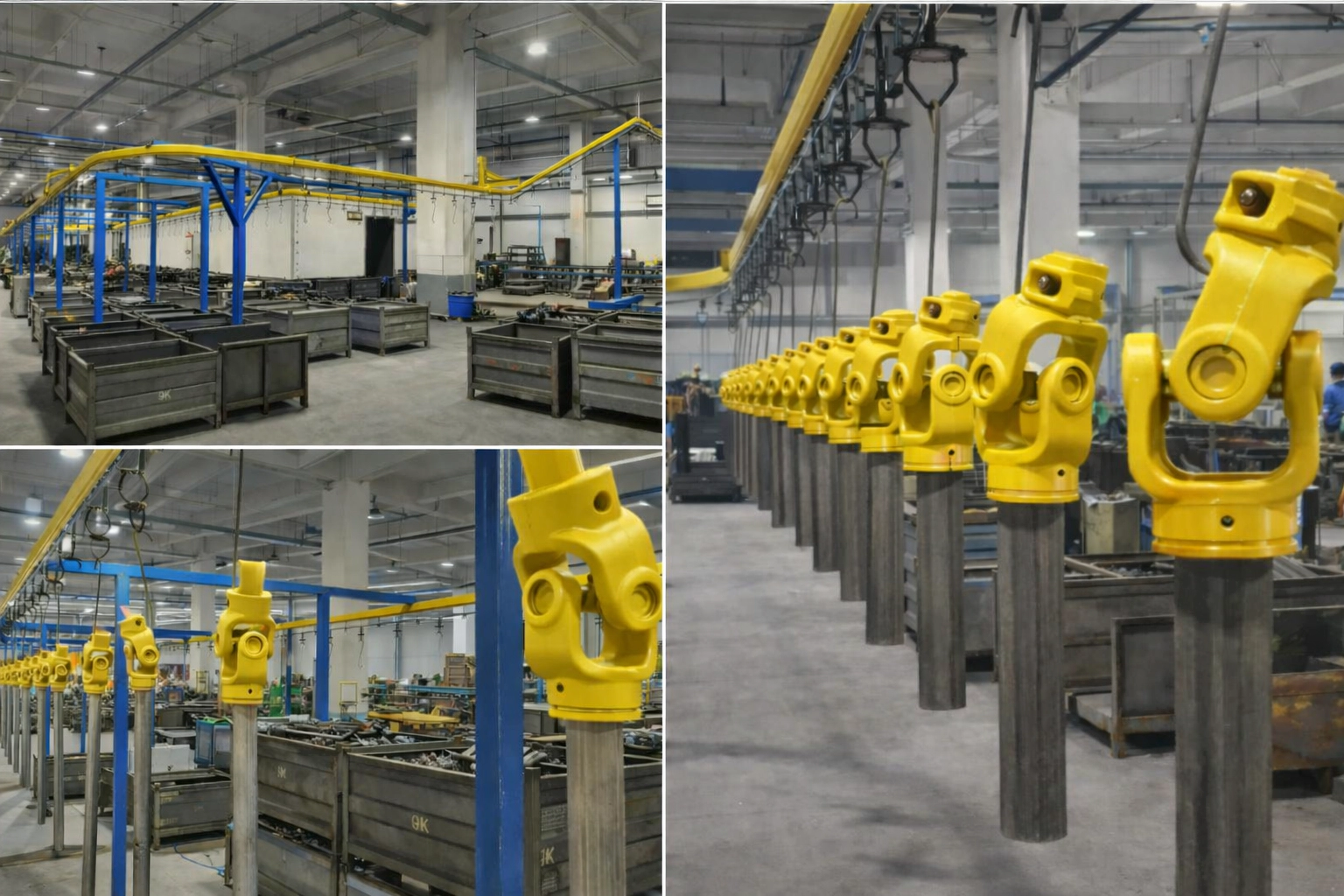

Our PTO shaft for fertilizer broadcaster is purpose-designed to meet the specific torque, speed, and length requirements of fertilizer application machinery. Every shaft undergoes rigorous quality testing — including torsional fatigue analysis, dynamic balancing, and dimensional inspection — before leaving our ISO-certified facility. The result is a PTO drive shaft that runs smoother, lasts longer, and keeps your fertilizer broadcaster operating at peak productivity season after season.

Technical Specifications – Fertilizer Broadcaster PTO Shaft

The following table presents the key parameters and customizable options for our fertilizer broadcaster PTO shaft. Scroll horizontally on mobile devices to view all data.

All specifications can be customized to your exact requirements. Contact our engineering team for a tailored solution.

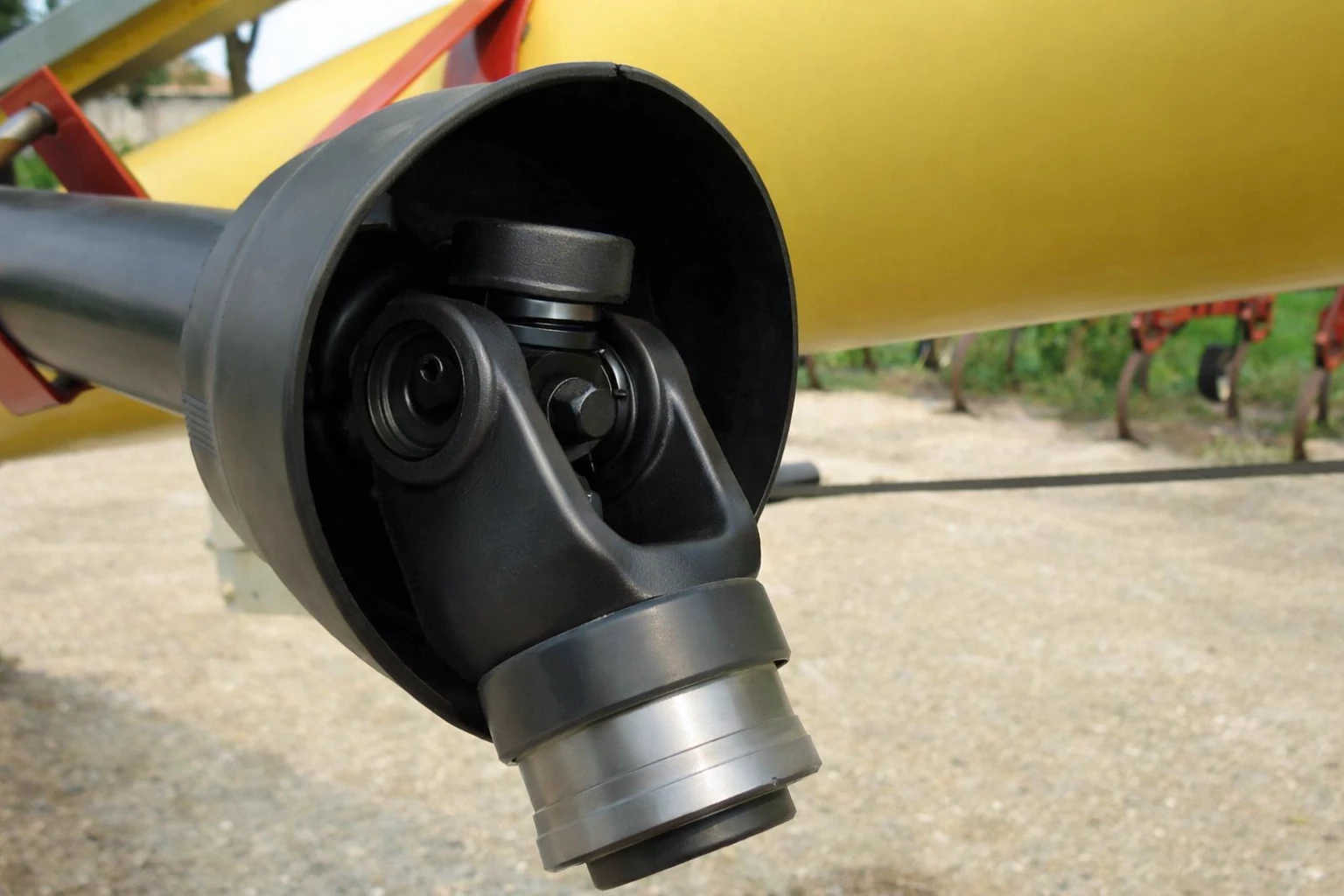

How the PTO Shaft Works on a Fertilizer Broadcaster

On a fertilizer broadcaster, the PTO shaft is mounted between the tractor’s rear PTO output stub and the implement’s input connection. When the tractor operator engages the PTO, the shaft begins rotating at the designated speed (540 rpm), transmitting mechanical power through a series of precisely machined components:

Structural composition: The shaft assembly consists of (1) a tractor-end yoke that slides onto the tractor PTO spline stub, (2) a pair of universal joints (U-joints) with needle-roller bearings that accommodate angular misalignment, (3) a telescoping tube assembly (lemon, triangle, or star profile) that adjusts for distance changes during operation, and (4) an implement-end yoke — often equipped with a torque-limiting clutch — that connects to the fertilizer broadcaster gearbox input shaft.

During fertilizer application operations, as the tractor moves across the field and the implement rises or lowers, the PTO shaft’s telescoping tubes extend and compress while the U-joints compensate for angular changes. This continuous articulation means the shaft must be engineered with tight tolerances, hardened splines, and high-quality bearing kits to withstand thousands of hours of demanding use. Our PTO shafts for fertilizer broadcaster are built exactly for this purpose — broadcasting granular or powdered fertilizer over crops.

Core Advantages – Why Choose Our PTO Shaft

Brand Compatibility, Cross-Reference & Spare Parts

Our PTO shaft for fertilizer broadcaster is a direct aftermarket replacement compatible with implements from leading brands, including:

⚠ Brand names mentioned above are for cross-reference and compatibility purposes only. They are registered trademarks of their respective owners. Our products are independent aftermarket replacements, not original OEM parts.

We also stock a full range of PTO shaft spare parts — cross & bearing kits, yokes, safety guards, clutch kits, splined hubs, and telescoping tubes — ensuring you can service and rebuild your PTO shaft without replacing the entire assembly.

Regulations, Compliance & Local Considerations

Australian Standards & WHS Compliance: Operating PTO-driven fertilizer broadcaster equipment in Australia falls under Work Health and Safety (WHS) regulations administered by Safe Work Australia. Employers and owner-operators must ensure all PTO shafts are fitted with compliant safety guards, and that guards are inspected before each use. Our PTO shafts meet the essential requirements of AS 1121 (PTO shafts and guards) as well as international standards CE, ISO 5673, and ASAE S203.

State-specific requirements: Some Australian states — including New South Wales (SafeWork NSW), Victoria (WorkSafe Victoria), and Queensland (Workplace Health and Safety Queensland) — issue specific codes of practice for PTO-driven machinery. Our product documentation includes maintenance schedules and safety checklists aligned with these codes.

Transport & Logistics: We ship PTO shafts Australia-wide via reputable freight carriers. For remote and regional destinations (common in Australian fertilizer application), we offer tailored logistics solutions to minimise lead time and shipping cost. Contact us for a freight quote to your area.

Quick Selection Guide – Choosing the Right PTO Shaft for Your Fertilizer Broadcaster

Use the guide below to identify the correct PTO shaft specification before ordering. If unsure about any parameter, our engineers are available to assist.

Installation Guide – PTO Shaft on Fertilizer Broadcaster

Follow these fertilizer broadcaster-specific steps for safe and correct PTO shaft installation:

① Pre-Installation Safety Checks

Park the tractor on level ground. Engage the parking brake. Disengage the PTO. Turn off the engine and remove the key. Wait for all rotating components to stop completely.

② Verify Shaft Specifications

Confirm the new PTO shaft matches your tractor PTO stub spline count and diameter. Verify the implement-end yoke matches the fertilizer broadcaster gearbox input. Ensure closed and extended lengths are within the measured tractor-to-implement range.

③ Lubricate Before Installation

Apply NLGI #2 lithium-complex grease through the grease nipples on both U-joints and the telescoping tube splines. Ensure the shaft telescopes freely without binding.

④ Attach the Implement-End Yoke

Slide the implement-end yoke onto the fertilizer broadcaster input shaft. Secure using the appropriate connection method — push-pin, bolt-on, or quick-release collar. Confirm the yoke is fully seated and locked.

⑤ Attach the Tractor-End Yoke

Slide the tractor-end yoke onto the tractor PTO stub spline. Engage the locking pin or collar. Verify the yoke does not pull free under moderate axial force.

⑥ Install Safety Guards

Fit the safety guard over the shaft assembly. Secure the guard retaining chains to the tractor and implement respectively, ensuring the guard cannot rotate with the shaft. Verify the guard spins freely on its bearing cones.

⑦ Final Check & Test Run

With the fertilizer broadcaster implement lowered and raised through its full range, confirm the PTO shaft does not bottom out (fully compress) or over-extend. Start the tractor and engage PTO at idle speed. Visually inspect for smooth, vibration-free rotation before increasing to operating speed.

PTO Shaft Troubleshooting & Solutions

Identify and resolve common PTO shaft issues on your fertilizer broadcaster with this quick-reference guide. Click each issue to expand the solution.

⚠ Excessive Vibration During Operation

Possible causes: Worn U-joint bearings, bent shaft tube, incorrect shaft length causing extreme operating angles, missing balance weights.

Solution: Inspect U-joints for play by gripping each yoke and checking for radial movement. Replace cross & bearing kits if any play is detected. Verify shaft length — the operating angle at each U-joint should not exceed 15° during normal use. If the tube is visibly bent, replace the telescoping assembly.

⚠ PTO Shaft Will Not Telescope (Stuck)

Possible causes: Corrosion on inner tube splines, lack of lubrication, debris ingress, damaged tube profile.

Solution: Disconnect the shaft. Clean splines with a wire brush and solvent. Apply generous grease to inner and outer tube splines. Work the shaft back and forth. If still seized, soak overnight in penetrating oil. Prevent recurrence by greasing telescoping splines at every service interval.

⚠ Shear Bolt Keeps Breaking

Possible causes: Implement overload, sudden engagement at high RPM, incorrect shear bolt grade, worn implement bearings creating drag.

Solution: Always engage PTO at idle and gradually increase speed. Verify the shear bolt grade matches the manufacturer’s specification — never substitute with a harder bolt. Inspect the fertilizer broadcaster implement for seized bearings, blocked intake, or excessive crop load. Consider upgrading to a friction-disc clutch if shear bolt failures are chronic.

⚠ Unusual Noise (Clicking / Knocking)

Possible causes: Worn U-joint needle bearings, loose yoke connection, excessive spline wear in telescoping section.

Solution: Disengage PTO and inspect all joints and connections. Replace U-joint cross & bearing kits showing any needle bearing damage or cap looseness. Check yoke-to-spline fit — if the yoke has noticeable rotational play on the stub, the yoke or stub may need replacement.

⚠ Safety Guard Overheating or Melting

Possible causes: Guard bearing cones seized, guard chain missing allowing guard to spin with shaft, contact between guard and rotating components.

Solution: Immediately stop PTO. Check guard bearing cones rotate freely; replace if seized. Verify retaining chains are connected to both tractor and implement. Ensure guard is centred and not contacting the shaft or yokes during operation.

⚠ Power Loss / Implement Running Slowly

Possible causes: Slipping friction clutch, worn splines causing incomplete engagement, PTO operating at wrong speed setting.

Solution: Check PTO speed selector — ensure it matches the fertilizer broadcaster requirement (540 rpm). Inspect friction clutch plates for wear and adjust or replace as needed. Examine yoke splines for excessive wear patterns. Replace worn components to restore full power transfer.

Case Studies – Engineer Field Notes from Australia

Real-world installations and feedback from Australian fertilizer application operations:

Frequently Asked Questions – PTO Shaft for Fertilizer Broadcaster

What PTO speed does a Fertilizer Broadcaster require?

Most fertilizer broadcaster models operate at 540 rpm, though some heavy-duty variants use 1000 rpm. Always check the implement manufacturer’s specifications before selecting your PTO shaft.

Can I use a universal PTO shaft on my fertilizer broadcaster?

Yes. Our PTO shafts are designed as universal replacements. Provided the spline count and yoke dimensions match, our shafts fit virtually all fertilizer broadcaster brands and models.

How often should I grease the PTO shaft on a fertilizer broadcaster?

We recommend greasing every 8 operating hours or at least once per work day. Use NLGI #2 grade lithium-complex grease applied through the grease nipples on each universal joint.

What safety guard is included?

Every shaft ships with a CE-compliant polypropylene safety guard covering both the shaft tube and universal joints, in accordance with ISO 5673 standards.

Do you offer custom PTO shaft lengths for fertilizer application applications?

Absolutely. We manufacture PTO shafts in custom closed and extended lengths. Send us your tractor-to-implement measurement and our engineers will recommend the ideal specification.
